Designed for the online garden trade: one carton, one bed, no loose boards, and a corner bracket strong enough to hold 180 litres of wet soil without the rail bowing.
Model TB-BD-505 · HS 4421.99.9780 · Made in Jiangsu, China

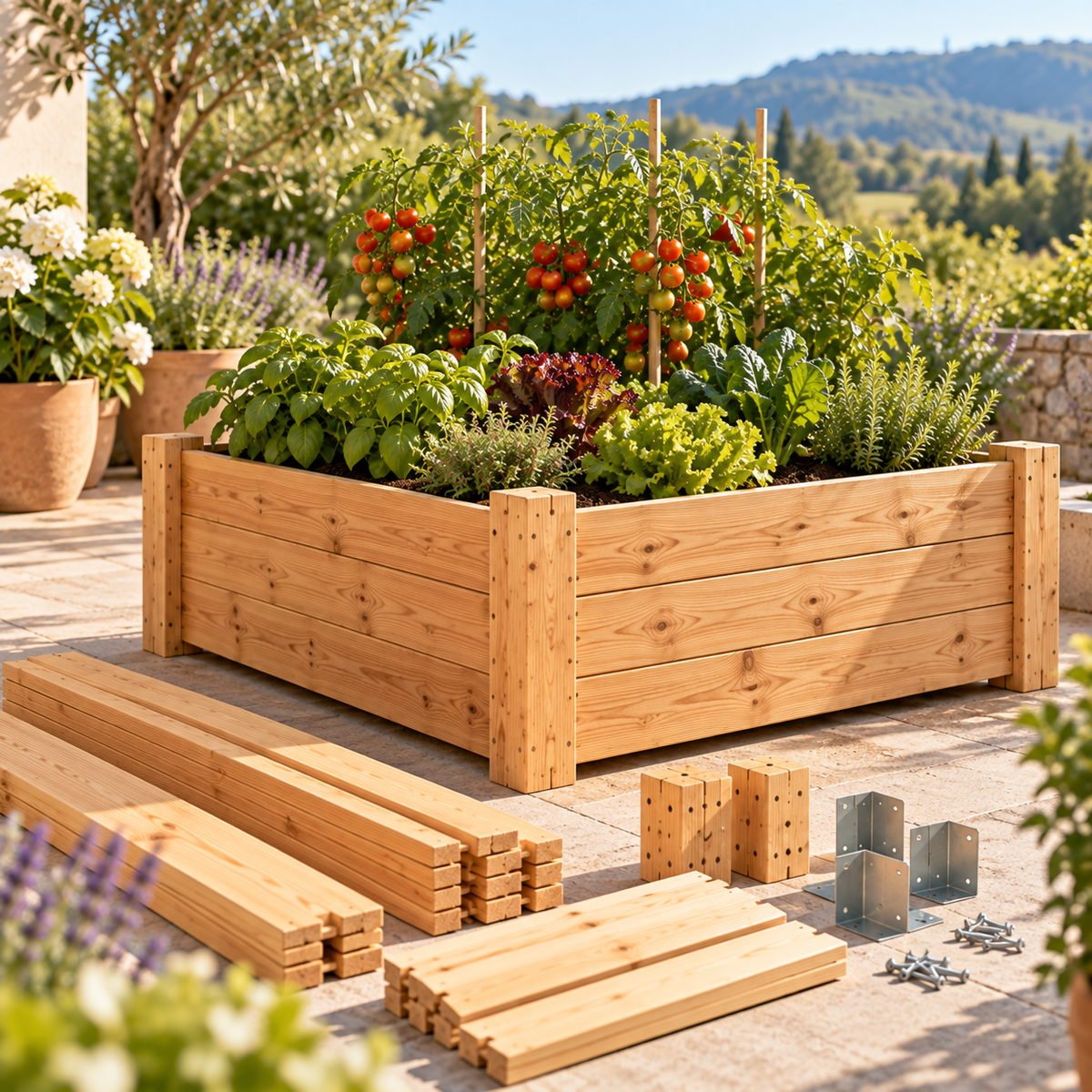

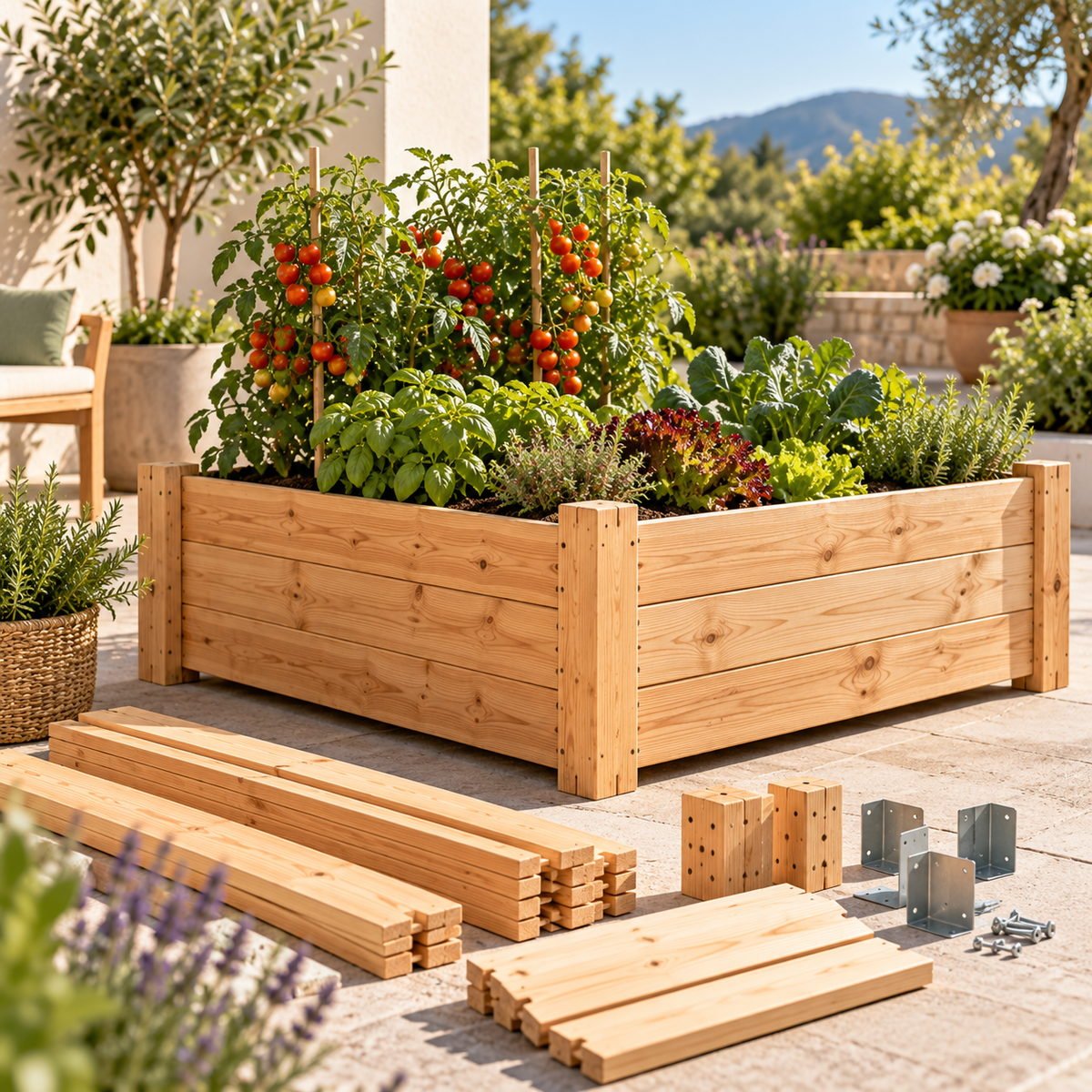

A 1200 × 600 × 300 mm 20 mm spruce raised bed with liner and brackets, flat-packed in one parcel-size carton. MOQ 200 pcs, 16/20/28 mm walls, geotextile or PEVA liner, ISTA 3A drop-tested, 15-minute assembly.
Why buyers pick this line
Parcel geometry: carton 1200 × 660 × 140 mm, 23 kg, inside most carrier size limits, which is the whole argument for selling this SKU online.
Wall options: 16 mm budget, 20 mm standard, 28 mm T&G premium; heights 150–900 mm.
Liner: 300 g geotextile (standard), 0.2 mm LDPE, or food-safe PEVA for herb and vegetable lines.
Brackets: 1.5 mm galvanised L-bracket, 2 mm powder-coated, or hidden dowel for a clean face.
Assembly: pre-drilled, countersunk, hex key included, illustrated manual in your language, 15 minutes.
How the quote is built
200+volume tier
500+volume tier
2,000++volume tier
We quote from your spec sheet, not from a public list: face profile, species, finish, hardware, packing and
order quantity. Send a drawing or a sample and you get a tiered offer with the packing list and CBM per container
inside 24 hours.
16 / 20 / 28 mm spruce or larch, 2 or 3 boards high
Corner joint
Bracket (1.5–2 mm steel) or tongue-and-groove post
Liner
300 g geotextile / 0.2 mm LDPE / food-safe PEVA
Timber treatment
ACQ class 3, or untreated larch, or thermally modified pine
Fixings
Waxed or stainless screws, pre-drilled, hex key included
Soil volume
1200 × 600 × 300 = 216 litres
Carton
1200 × 660 × 140 mm, 23 kg, ISTA 3A drop-tested
Volume tiers (pricing is built from your spec, not from a list)
Order quantity
What changes commercially
200–499
Plain kraft carton, geotextile liner
500–1,999
Printed carton + QR install video + PEVA liner
2,000+ / 40'HQ
Own-brand colour box, accessory bundle option
Construction & materials
Materials, moisture and finish
We start from the failure point, the bottom rail sitting in wet soil. And add a 6 mm drainage gap under the base boards, a liner that stops short of the timber-to-ground contact, and a bracket that carries the soil load rather than the screws. On a 750 mm-deep bed the wall sees about 130 kg per linear metre of lateral pressure when saturated; that is a bracket and board-thickness decision, not a marketing claim.

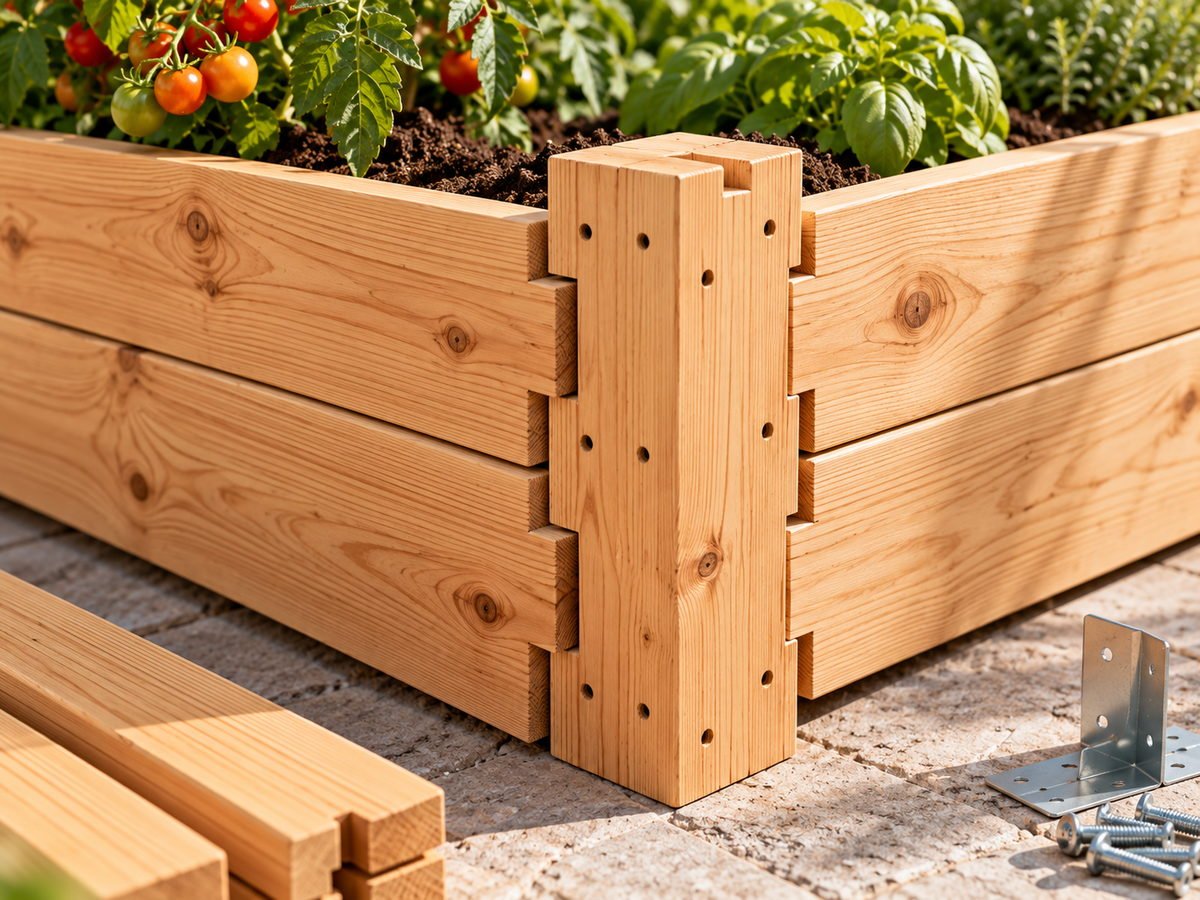

Corner bracket 1.5 mm galvanised, liner tucked outside the rail, 6 mm base drainage gap visible
Green or brown ACQ, opaque paint, semi-transparent stain, charred (yakisugi).
Premium faces: ribbed, fluted, or shadow-gap cladding boards for patio lines.
Optional accessories: cold-frame lid, trellis back panel, drip-irrigation rail, castor base, brass name plate.
Two-bed bundles: 1200 × 600 + 900 × 450 in one carton for 'beginner vegetable kit' listings.
Co-pack: soil scoop, gloves and 6 seed cards from cluster partners, gift-boxed.
Application & compliance
How this ships and what paperwork comes with it
Sold three ways — parcel-first online brands, palletised garden-centre retail, and oversized hospitality planters.
Food-safe optionPEVA / LDPE liner
Liner declared for vegetable and herb beds; PEVA free of phthalates.
TreatmentACQ or untreated larch
Class 3/4 retention record, or chemical-free thermally modified pine.
LegalityEUDR + Lacey
Harvest geolocation data on request for your due-diligence statement.
Parcel-readyISTA 3A drop test
One bed per carton under 25 kg, engineered for carrier networks.
For EU and UK shipments we supply the EN 335 use-class declaration, treatment retention certificate and EUDR-ready harvest data; for the US, Prop 65 coating statements and a TSCA determination (solid timber is out of scope). Full document list on the certifications page.
FAQ
Objections we handle weekly
The answers below are the ones we give on the phone. Anything missing, ask on WhatsApp.
Is treated timber safe for food crops? What do I print on the box?
ACQ in class 3 with a liner barrier is the accepted industry construction for vegetable beds in the EU and US, and we recommend the PEVA liner for herb and root-vegetable lines. What we will not do is print an organic-input claim. Certification bodies disagree, so that is your call. Untreated larch or thermally modified pine is the clean-claim route at 8–15 % more FOB.
Will it arrive damaged through a courier network?
Packed as a parcel, not a de-palletised retail unit, it survives: one bed per carton, 40 mm foam at board ends, rigid sleeve for brackets, ISTA 3A drop test on the finished design. Damage claims on this SKU have run under 0.8 %.
Can I offer 900 mm depth for balcony or accessibility gardening?
Yes. Elevated beds at 750–900 mm are our fastest-growing size, driven by accessible gardening and balcony grow-food. At that depth we specify 28 mm T&G boards plus a mid-rail, and the FOB moves into a higher band.
What is the real MOQ if I want three sizes?
200 pcs per size, so a first order is 600 pcs. Below that we can supply from stock dimensions in two finishes; those carry no custom carton print or liner upgrade.
