Flat-Pack Raised Garden Beds
20 mm spruce bed, liner + brackets, one parcel-size carton, ISTA 3A tested, quoted per drawing.
Product category
Raised beds, planters and window boxes, flat-packed to a parcel size
This is the category where the belt around us wins: the same suppliers that grows China's ornamental plants supplies the boards, the liners, the soil-and-seed accessories, and the people who know why a bed rots at the bottom rail first.
- Lines11 lines
- MOQ from200 pcs
- Lead time30–40 d
- HSHS 4421
- Customdrawing or sample
The short answer
We manufacture flat-pack wooden raised garden beds, planter boxes and window boxes from 300 mm to 2400 mm. MOQ 200 pcs per size, larch / spruce / ACQ pine, liner and corner brackets included, one carton per bed for parcel fulfilment.
TB-BD-620
Spec sheet & tiers →
Larch Trough Planters & Window Boxes
Larch or ACQ pine troughs and window boxes, floating base, welded liner, brackets, quoted per drawing.
Range at a glance
Bed and planter formats we currently ship
Every format below is quoted with its liner, corner brackets, fixings, one assembly instruction sheet and one carton.
| Line | Material | Typical size / section | Finish | MOQ | HS |
|---|---|---|---|---|---|
| Classic raised bed | 20 mm spruce, ACQ or larch | 1200 × 600 × 300 mm | green / natural / brown | 200 | 4421 |
| Deep raised bed | 28 mm tongue & groove | 1800 × 900 × 750 mm | stain, charred (yakisugi) option | 150 | 4421 |
| Corner / L-shaped bed | 20 mm boards, mitred corner | 1200 × 1200 × 450 mm | ACQ | 150 | 4421 |
| Tiered / pyramid bed | 16 mm boards, 3 tiers | 1100 × 1100 × 900 mm | brown stain | 100 | 4421 |
| Trough planter | Larch 18 mm, liner | 800–1500 × 300 × 300 mm | oiled, natural grey | 200 | 4421 |
| Window box | Pine 15 mm + steel bracket | 600 / 800 / 1000 mm | paint colours, galvanised bracket | 300 | 4421 |
| Vertical plant wall | 16 mm frame, 6–12 pockets | 1200 × 600 mm | ACQ + UV fabric pockets | 150 | 4421 |
| Potting bench | Spruce frame, composite top | 1200 × 450 × 1600 mm | paint + clear | 100 | 4421 |
All dimensions to customer drawing; tolerance ±1.0 mm on cut parts, ±2.0 mm on assembled flat-pack. Every offer is built from species, finish, packing and freight at the time of the quote — there is no published list price.
Specification depth
Four build details that decide whether a bed lasts three seasons or eight
A raised bed is a water-trap. We engineer around that: drainage gap at the base rail, liner that does not seal the wood, corner brackets that carry the soil load instead of the screws, and a board thickness that survives a winter of frozen compost pushing outward.
- Board thickness: 16 mm for budget retail, 20 mm for standard, 28 mm T&G for premium and 40 mm for structural beds over 600 mm deep.
- Liner: 300 g non-woven geotextile or 0.2 mm LDPE with drainage perforation; food-safe PEVA available for herb and vegetable lines.

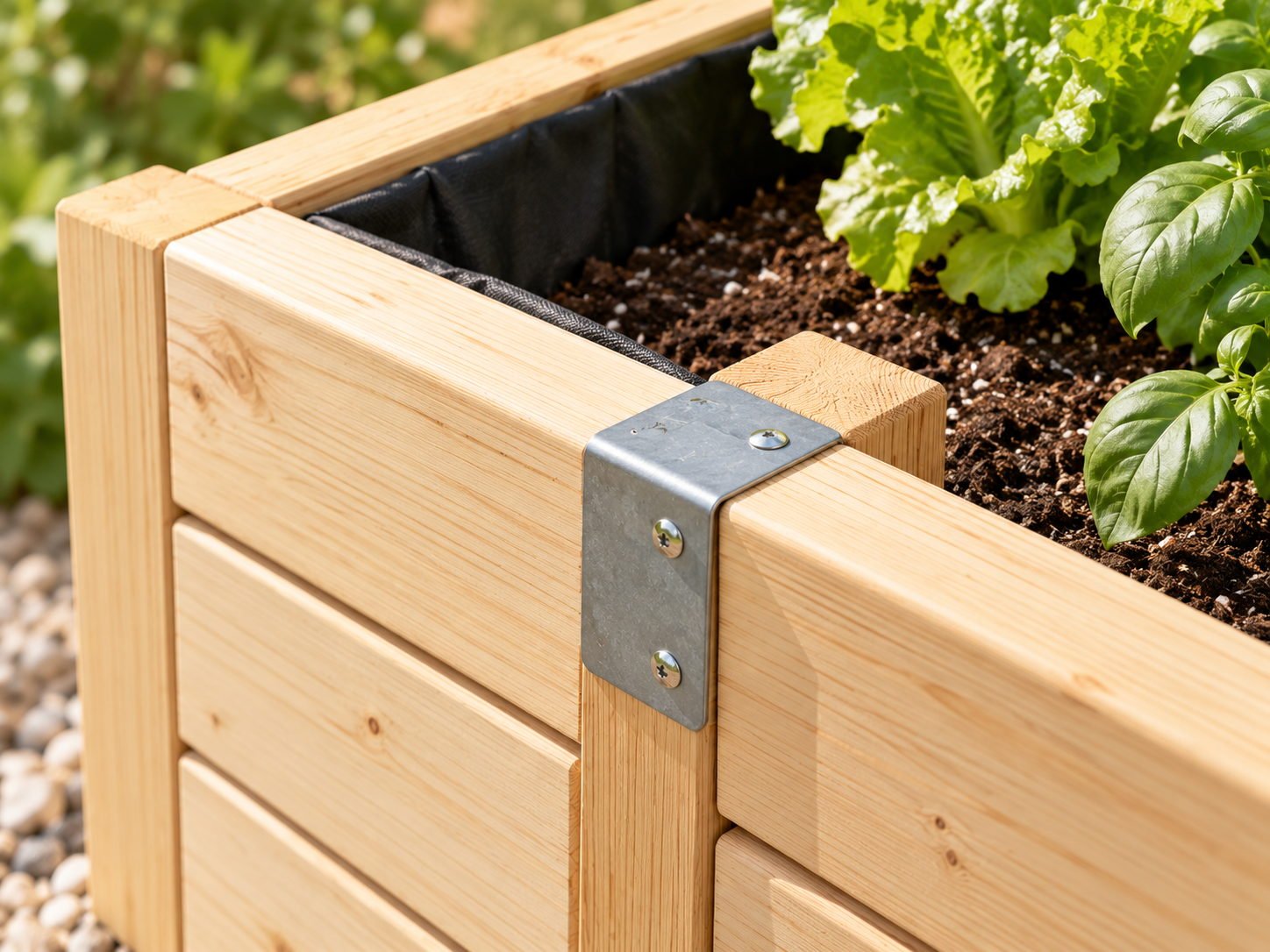

- Corner brackets: 1.5 mm galvanised L-bracket (standard), 2 mm powder-coated steel, or hidden dowel for a clean look.
- Screw path: pre-drilled and countersunk, stainless option for coastal and for markets selling 'veg-safe' claims.
- Carton engineering: 1200 × 660 × 140 mm, 23 kg, one bed per carton, no loose boards — this is what makes parcel delivery viable for online sellers.
- Optional extras: cold-frame lid, trellis add-on, irrigation drip rail, castor base, brass name plate for hospitality.
Built for these buyers
Buyer profiles, and what each one needs differently
- Online garden brands: parcel-dimension cartons, drop-test to ISTA 3A, unprinted kraft box, insert card with your QR code.
- Garden centres & DIY: palletised retail units with shelf-talker header, mixed sizes per pallet, EDI-ready barcode.
- Hospitality & landscape: oversized patio planters with hidden castors, drainage plug, brass lettering, 5-10 pc prototype run.
Trade terms
| Term | Our standard |
|---|---|
| MOQ | 500 pcs per design; mixed container accepted: as low as 100 pcs per size |
| Sample | 5–7 working days, freight collect; tooling credit on first PO |
| Lead time | 30–45 days after confirmed sample + 30% deposit |
| Incoterms | FOB Lianyungang / Shanghai standard; CIF, DAP, DDP on request |
| Payment | 30% T/T, 70% against B/L copy; irrevocable L/C at sight for larger contracts |
| Inspection | SGS / BV / our own AQL 2.5 pre-shipment report, free of charge |
| Market | Entry requirement we document |
|---|---|
| European Union | EN 335 class 3/4 for ground contact, EUDR DDS, REACH limits on preservatives, German LUCID + French CITEO packaging registration |
| United Kingdom | Same EN treatment classes; UK packaging EPR (producer responsibility) via a compliance scheme |
| United States | TSCA Title VI only if composite panels are used; Lacey Act declaration; Prop 65 statement for coatings |
| Nordic / Baltics | Preference for untreated larch or thermally modified pine with oil; documented PEFC chain of custody |
Landed-cost example: a 40'HQ of this category typically lands 18–34% above FOB once freight, duty and port handling are included. We build the packing list to maximise cube. Ask for the CBM per 40'HQ sheet.
FAQ
Category questions we get in every RFQ thread
The answers below are the ones we give on the phone. Anything missing, ask on WhatsApp.
Will a flat-pack bed survive a parcel network?
Yes if it is designed as a parcel, not a de-palletised retail unit. We pack one bed per carton at 23 kg max, with 40 mm foam at board ends and a rigid cardboard sleeve for the corner brackets, and we drop-test to ISTA 3A before you approve the design. Damage claims on this line have run below 0.8 % across 24 shipments.
Is treated timber safe for growing vegetables?
ACQ is accepted for vegetable beds in most markets provided there is a liner barrier between soil and timber; we recommend our food-safe PEVA liner for herb and root-vegetable lines and quote an alternative, untreated larch or thermally modified pine. At 8–15 % more. We will not print an organic-input claim on your behalf; certification bodies disagree on treated timber and it must be your call.
Can you do charred (yakisugi) or ribbed modern facings?
Yes. Charring is done in-house on pine and spruce boards, brushed and oiled, class 3 durability without chemical treatment. Ribbed/fluted facings are machined on our moulder. Both are popular for hotel and restaurant patios and let you retail a plain box at a design-object price.
What is the cheapest way to test the market?
Start at 100 pcs of one size in two finishes. A 200-piece trial is our usual entry order, and we will hold a 30-day price on the timber. Second orders at 500 pcs per size drop FOB roughly 9–14 %; we will show you the unit-cost curve before you commit.
Adjacent categories
Range, specs & MOQ →
Range, specs & MOQ →
Range, specs & MOQ →
Other things this factory makes
Picture Frames & Mouldings
Pine, poplar, paulownia, MDF and acacia profiles; primer, paint, foil, wax or distressed finish; glass, acrylic, backing, hanging hardware and barcode retail packing.
Fences, Trellis & Privacy Screens
Picket, lap-board, arched trellis, lattice, reeded privacy screen, lawn edging, fence posts and caps, hit-and-miss, no-dig pet fence, sawn, treated and packed in one place.
Sheds, Pergolas & Garden Structures
Storage sheds, apex/lean-to, playhouses, she-sheds, arch arbours, freestanding pergolas, gazebos, cold frames, walk-in greenhouses, insulated garden-office panels.
Start a project
Get the raised beds, planters & window boxes catalogue and spec pack
Tell us target retail or landed cost and we reverse-engineer the build: species, thickness, finish, packing.
