Picture Frames & Mouldings

Custom Pine Picture Frames Manufacturer. OEM & Wholesale from our Jiangsu factory

Our workhorse frame: solid pine or poplar profile, mitred, spline-keyed, primed and top-coated in-house. It is the SKU that carries most wholesale programmes because it looks like a mid-market retail frame and costs a frame shop a fraction of the shelf price landed.

Request a quote Ask on WhatsApp

MOQ500 pcs
Lead time25–40 d
Pricingquoted per drawing
HS code4414.00.0090
ToolingNo tooling for size/colour changes

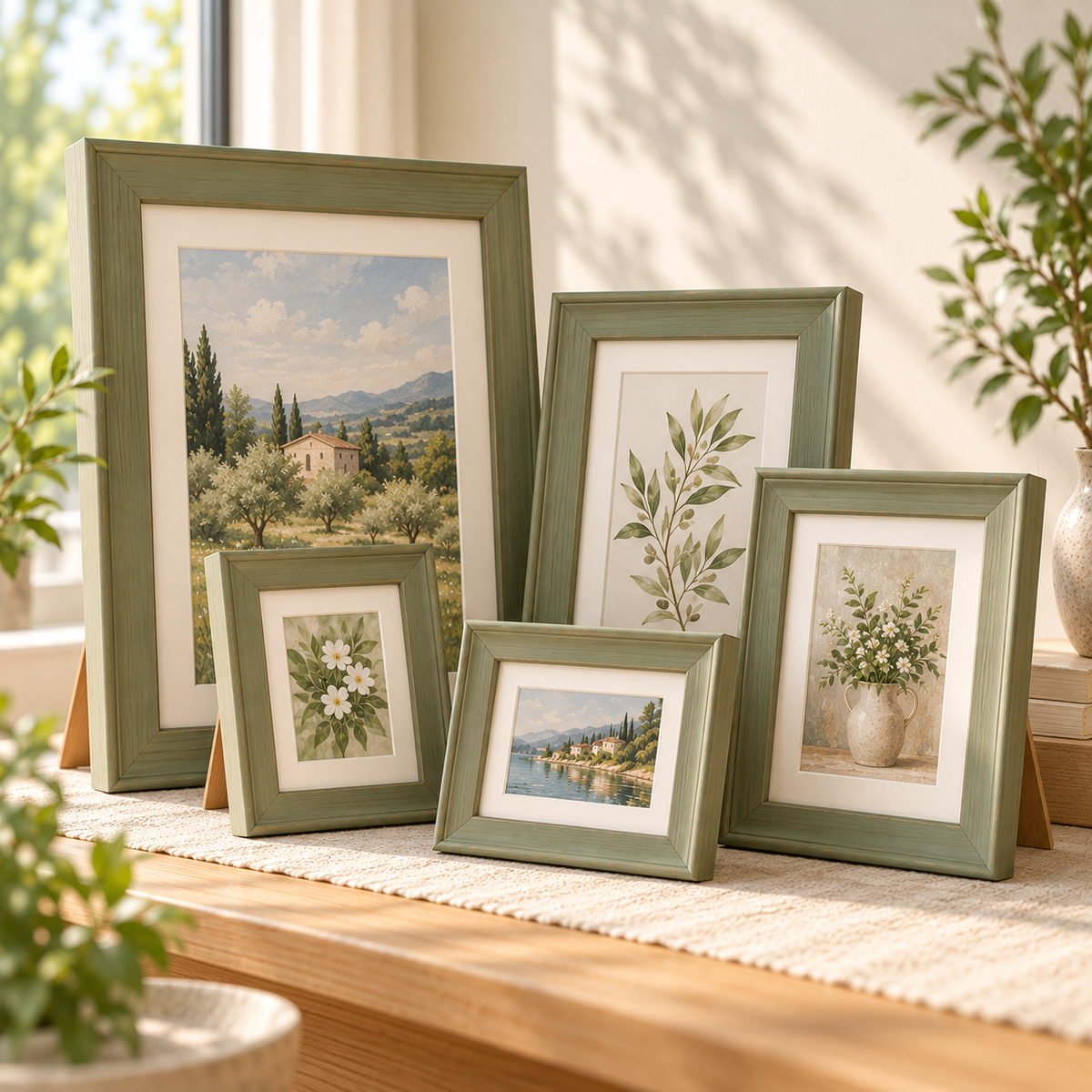

Custom painted pine picture frames in five sizes with acrylic glazing and MDF back, standing on a studio table

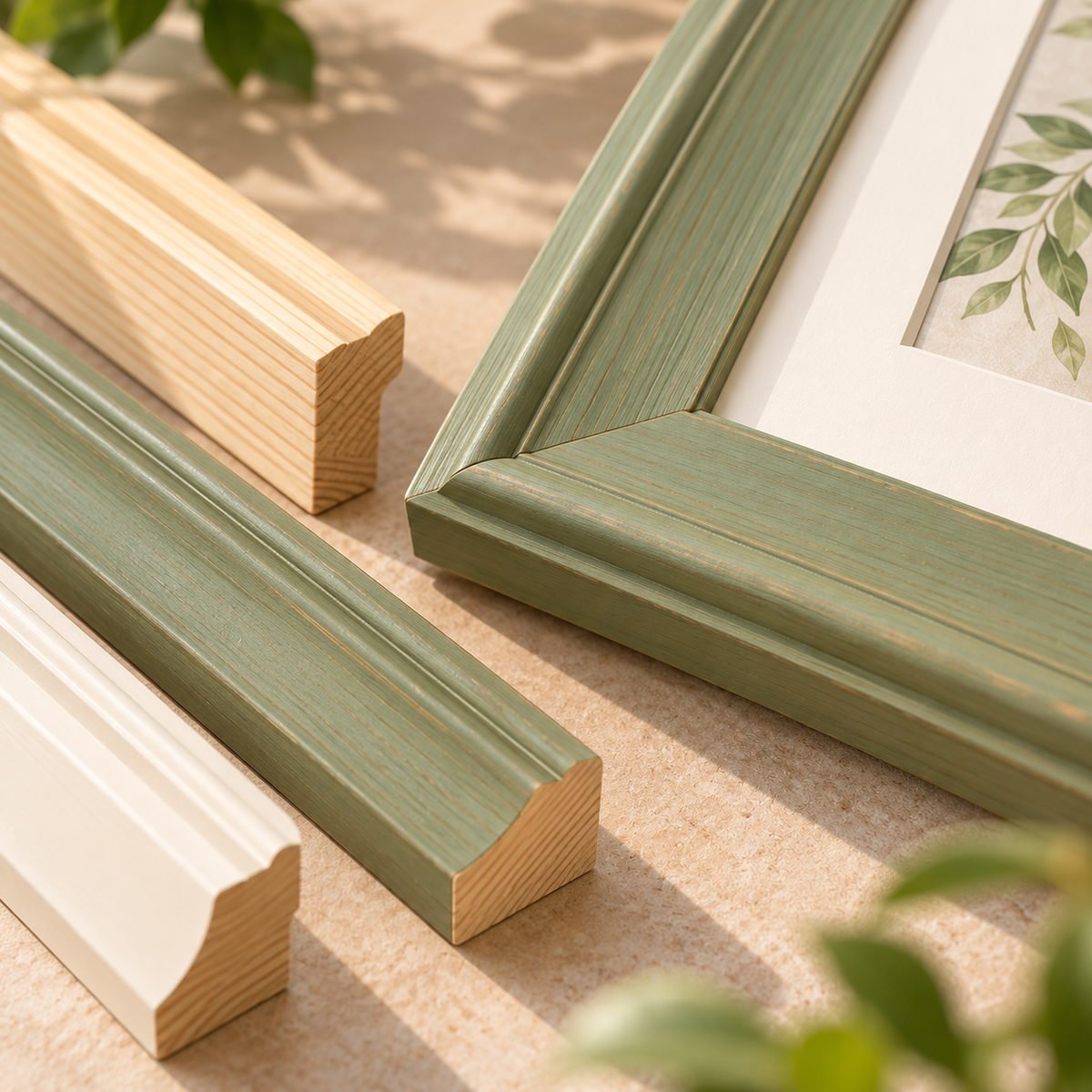

Custom Pine Picture Frames - close detail of the construction

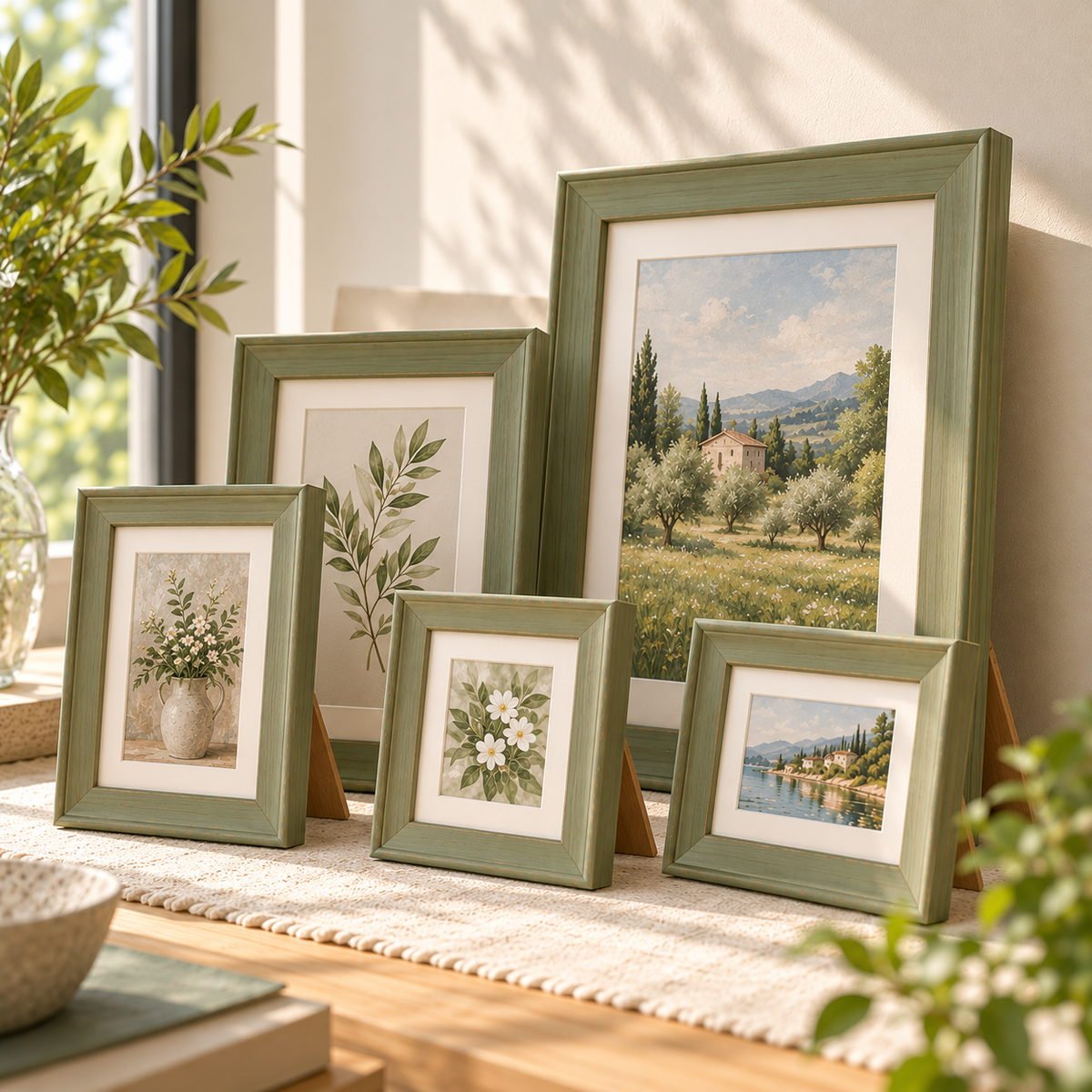

Custom Pine Picture Frames - the range, side by side

OEM / ODM from your drawing
Mixed container OK
FSC / PEFC on request
Third-party inspection accepted
Sample in 5–7 days

Model TB-FR-100 · HS 4414.00.0090 · Made in Jiangsu, China

A 24 mm face, three-coat primed solid-pine frame, made to your size list. MOQ 500 pcs with mixed sizes, 45° mitre with spline key, acrylic or float glass, hardware fitted, 25–40 day lead.

Why buyers pick this line

Profile you own: we machine from your drawing or match a mailed sample; new profile tooling quoted at RFQ, 7–10 days.
Corner you can defend: glue-block plus spline as standard, RF corner welding or metal keys on request; 25 kg drop test per batch.
Finish that photographs well: primer + 2 coats, 40 °C line, cross-cut adhesion check on every colour change.
Sizes from a spreadsheet: 5R to 50 × 70 cm or inch sets (4×6, 5×7, 8×10, 11×14, 16×20, 20×30) in one PO.
Retail-ready: acrylic glazing, HDF back, D-rings and rotating tabs fitted, barcode on a 40-pc master carton.

How the quote is built

500+volume tier

1,000+volume tier

5,000+volume tier

We quote from your spec sheet, not from a public list: face profile, species, finish, hardware, packing and order quantity. Send a drawing or a sample and you get a tiered offer with the packing list and CBM per container inside 24 hours.

Send RFQ for TB-FR-100 WhatsApp quote

Email this spec Sample & tooling policy

Packaging: 40 pcs per double-wall carton, corner cards + kraft sleeve; optional colour gift box per piece
Container load: 40'HQ ≈ 14,000 pcs (mixed sizes) · 20'GP ≈ 5,600 pcs
Weight: 0.28–1.9 kg per piece depending on size
Payment: 30% T/T deposit, 70% against copy of B/L; L/C at sight for larger orders

Spec sheet: Custom Pine Picture Frames
Attribute	Standard configuration
Profile	24 × 26 mm face, rebate 8 mm (custom 15–90 mm)
Timber	Solid pine or poplar, kiln-dried 10–12 % moisture
Corner build	45° mitre, glue-block + spline; RF weld / metal key optional
Finish	Primer + 2 top coats; white, black, oak-effect, gold foil, distressed
Glazing	1.5 mm acrylic (export default) or 2 mm float glass
Back	2.5 mm HDF, hardboard or MDF; rotating tabs or D-ring + swivel
Matboard	Optional 1.2 mm window mat, acid-free on request
Tolerance	±0.5 mm size, ±1.0 mm diagonal, ±0.3 mm flatness up to 40 cm
Packing	Corner-carded, 40 pcs master carton, ISTA 3A tested
Carton quantity by size	20 × 20 cm 200 pcs · 20 × 30 200 · 30 × 30 100 · 30 × 40 100 · 40 × 40 50 · 40 × 50 50 · 50 × 50 50 · 50 × 60 40 · 50 × 70 20

Volume tiers (pricing is built from your spec, not from a list)
Order quantity	What changes commercially
500–999	Mixed sizes OK, kraft box, no printed sleeve
1,000–4,999	Colour sleeve + barcode, one pallet per size
5,000–19,999	Contract pricing, colour matched to Pantone
20,000+ / 40'HQ	Full-cube programme, packaging optimised with you

Construction & materials

Materials, moisture and finish

Frames fail on moisture and on coating build-up. We machine at 10–12 % and hold the total film thickness under 90 µm so a rebate still accepts a 1.2 mm matboard and a 2.5 mm back without stress. Export orders are packed with 2 g desiccant per carton and a moisture reading on the inspection sheet.

Timber options we keep in our local supply pool
Species / board	Where it wins	Watch out for
Solid pine	Cheap, machines cleanly, takes paint well	Knot bleed if primer is skipped. We block-coat
Poplar	Light, stable, best for primed colours	Soft; dents in transit if corner cards are omitted
MDF + pine backer	Perfect for ornate coving profiles	TSCA Title VI certificates required for the US
Mongolian pine (樟子松)	Denser than radiata, takes primer without blocking	Our default for export frame programmes
Brazilian pine (巴西松木)	Light, straight grain, low weight per unit	Soft. We use it for easels and light frames, not load-bearing parts
Acacia / rubberwood	Premium look for floating frames	+35–60 % material; plan retail price accordingly

Profile library: 15, 24, 32, 45, 60 and 90 mm faces, all cut on the same moulder set

Standard colours: matt white, black, warm grey, natural oak-effect, walnut, gold, silver foil.
Custom: Pantone matching, 2K lacquer, hand-distressed, waxed, charred face.
Metallic edges: hot-foil inner lip, 1–6 mm, on ornate profiles.
Backings: printed art board, kraft backing, or a memo-board cork insert.
Extras: LED strip version, stand-off wall mount, easel back for table display.

Stock & custom size grid
Size / SKU	Face width	Depth	MOQ
5R (10 × 15 cm)	24 mm	26 mm	100 pcs
8 × 10 in / 20 × 25 cm	24 mm	26 mm	100 pcs
11 × 14 in	28 mm	30 mm	100 pcs
16 × 20 in / 40 × 50 cm	32 mm	34 mm	50 pcs
20 × 30 in / 50 × 70 cm	35 mm	38 mm	50 pcs
Custom to drawing	15–90 mm	20–45 mm	500 pcs

Application & compliance

How this ships and what paperwork comes with it

Frames ship into five buyer types, and each one asks for different paperwork. We adapt the packing and the certificate set rather than sending the same carton everywhere.

Panel complianceTSCA Title VI / CARB P2

Certificates per board batch; solid pine and poplar are out of scope and cheaper for the US market.

Timber legalityEUDR + Lacey

Species and harvest-country data supplied for the DDS and for the US PPBM declaration.

Finish safetyREACH / EN 71-3

Coatings tested; migration report available where the SKU could be judged child-adjacent.

PackagingISPM-15 pallets

Solid-wood pallets heat treated and marked; carton marks to your PO scheme.

For the US we quote solid timber (out of TSCA scope) or certified composite board, and supply the Lacey Act plant-product data your broker needs for the PPBM declaration. For the EU, the frame and its backing are EUDR-relevant from 30 December 2026, so we supply harvest geolocation with the DDS fields pre-filled — see our EU compliance guide.

FAQ

Objections we handle weekly

The answers below are the ones we give on the phone. Anything missing, ask on WhatsApp.

Can you make a frame to an exact non-standard size, like 13 × 17 in?

Yes. That is the point of a factory. Non-standard sizes cost the same tooling as a standard size because we cut on a CNC double mitre saw with a program per size; only the mat window is new work. MOQ 300 pcs per unusual size, sample in 5 days.

What is the difference between your entry frame and the next tier up?

Face width and coating count. The entry build is a 15 mm single-coat primed poplar in bulk; the next tier buys a 32 mm three-coat pine frame with corner keys, acrylic and a printed sleeve. We will quote both so you can place the product in the right shelf tier.

Do you supply mat boards and print the inserts?

Yes. 1.2 mm matboard cut to your window, acid-free option for gallery lines, and digital or screen printing of prints and insert cards. Bundling the print with the frame turns a small frame order into a three-times-larger one for most gift-shop buyers.

How do you control corner gaps on painted frames?

Three habits: spline-keyed joints instead of glue-only, a two-minute clamping cycle before the finish line, and a 0.2 mm relief cut in the rebate corner so paint cannot bridge and lift. We photograph 10 pcs per batch and attach it to the pre-shipment report.
