Branch-form wall shelves, CNC-cut to your own outline
Every shelf on the shelf looks the same: a rectangle with a bracket. An irregular outline, a branch, a wave, a stack of offset ledges — is the cheapest differentiation available in wood, because the cut path costs nothing extra once the program exists.
Model TB-PS-310 · HS 4420.90 · Made in Jiangsu, China

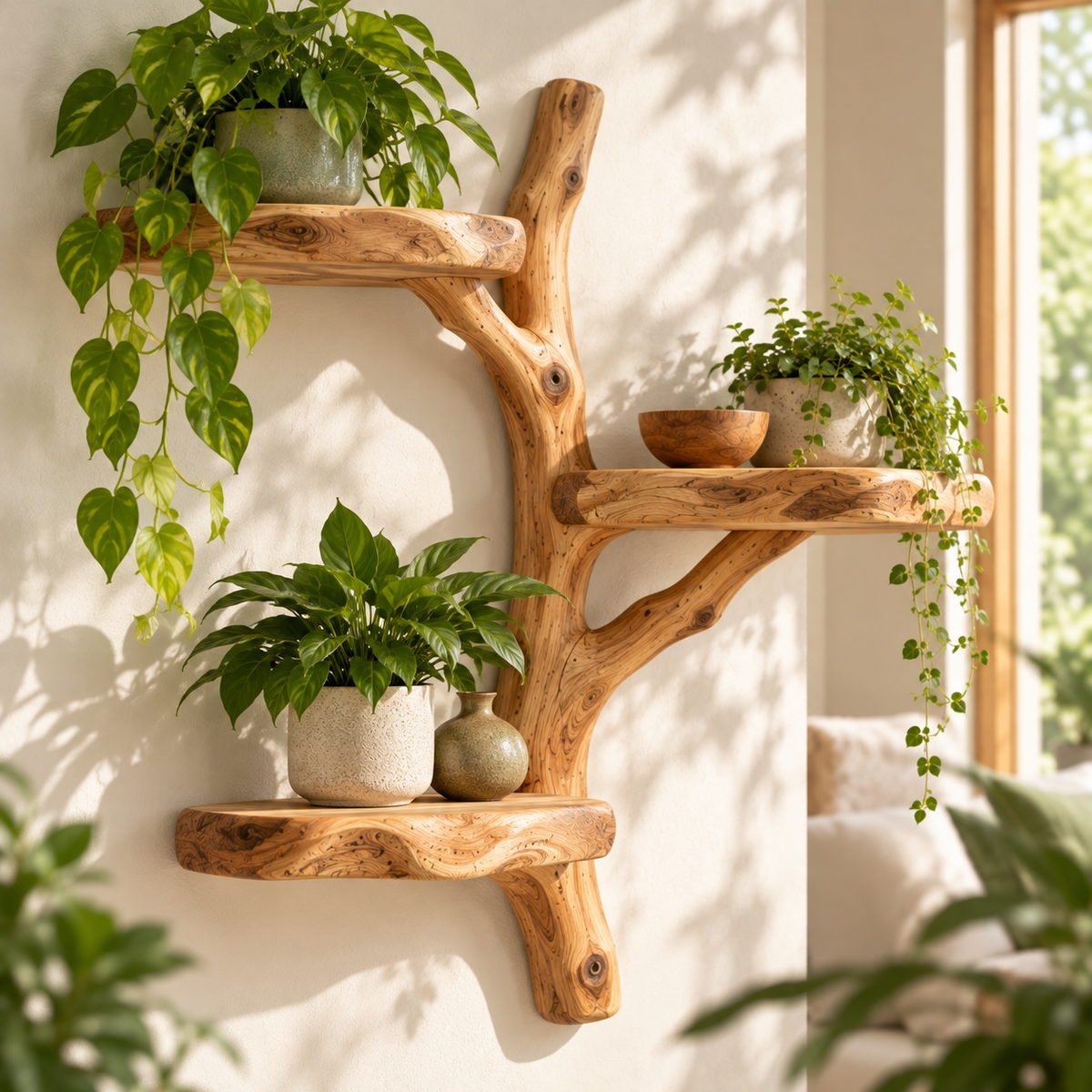

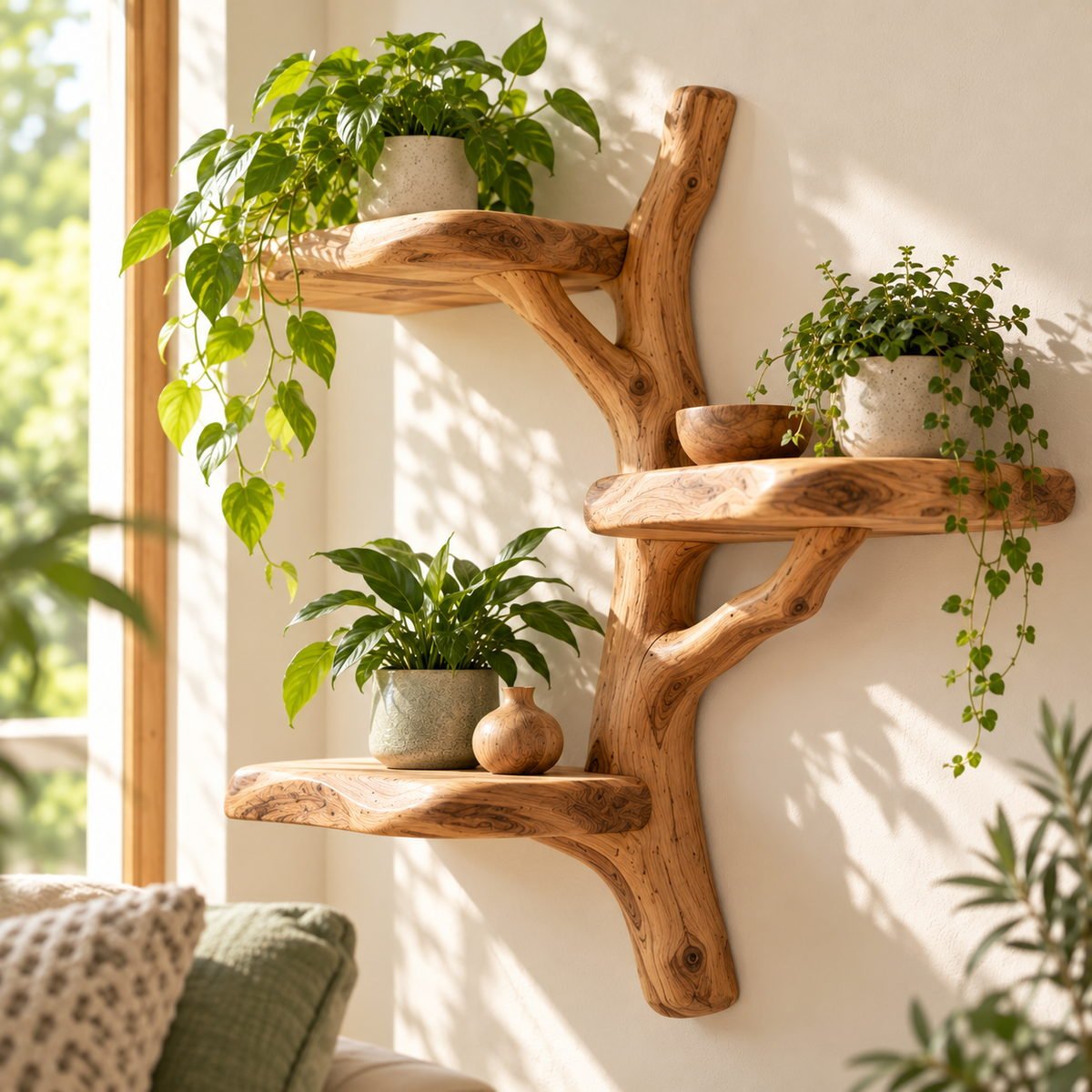

A CNC-cut wall shelf with an organic, irregular outline, three asymmetric shelves in one silhouette, cut from a single 18 mm panel. MOQ 150 pcs, pine, ply or oak-veneer, hidden French cleat, quoted per drawing from your outline or ours.
Why buyers pick this line
Your outline, cut to size. Send a sketch, a competitor photo or a vector and we return a cut file. The outline is a CNC path, so a wavy edge costs the same machining time as a straight one.
One panel, three shelves. The silhouette is cut from a single 18 mm board with the shelves slotted and glued, which keeps the grain continuous across the whole piece, the detail that separates a design object from flat-pack.
Hidden fixing. A French cleat in the same species, screw pockets on the back, so nothing shows from the front and the shelf sits flush to the wall.
Sells in a photograph. Irregular shapes stop the scroll; this is the SKU buyers use as the hero image for a whole collection, and it earns its carton on click-through alone.
How the quote is built
150+volume tier
400+volume tier
1,500++volume tier
We quote from your spec sheet, not from a public list: face profile, species, finish, hardware, packing and
order quantity. Send a drawing or a sample and you get a tiered offer with the packing list and CBM per container
inside 24 hours.
One unit per carton with outline-matched end caps, cleat and plug pack, 0.045 m³
Container load
40'HQ ≈ 2,000 pcs · 20'GP ≈ 820 pcs
Weight
1.2–2.2 kg per unit
Payment
30% T/T deposit, 70% against copy of B/L; L/C at sight for larger orders
Spec sheet: Branch-Form Wall Shelf
Attribute
Standard configuration
Overall size
70 × 45 cm, 3 shelves; 90 × 50 cm on request
Panel
18 mm pine, birch ply or oak-veneer MDF
Construction
Single-panel silhouette, shelves slotted and glued, grain continuous
Fixing
Hidden French cleat + 2 screw pockets, plugs included
Load
5 kg per shelf / 12 kg total, proof-tested at 3×
Edge
1 mm radius, hand-sanded; painted edges sealed
Finish
Hardwax oil, water-based lacquer, two-tone
Tolerance
±1.0 mm on the cut outline
Volume tiers (pricing is built from your spec, not from a list)
Order quantity
What changes commercially
150–399
One outline, natural oil, kraft carton
400–1,499
Two outlines in the range, printed sleeve, barcode, hanging kit
1,500+ / 40'HQ
Exclusive outline for your market, own-brand carton, mixed finishes
Construction & materials
Materials, moisture and finish
Pine keeps the price honest and the grain visible; birch ply gives the cleanest painted edge and the flattest panel, which matters when the outline is thin. Oak-veneer MDF is for the premium tier where the buyer wants the look of solid oak without the movement, declare the veneer honestly and nobody minds.
Timber options we keep in our local supply pool
Species / board
Where it wins
Watch out for

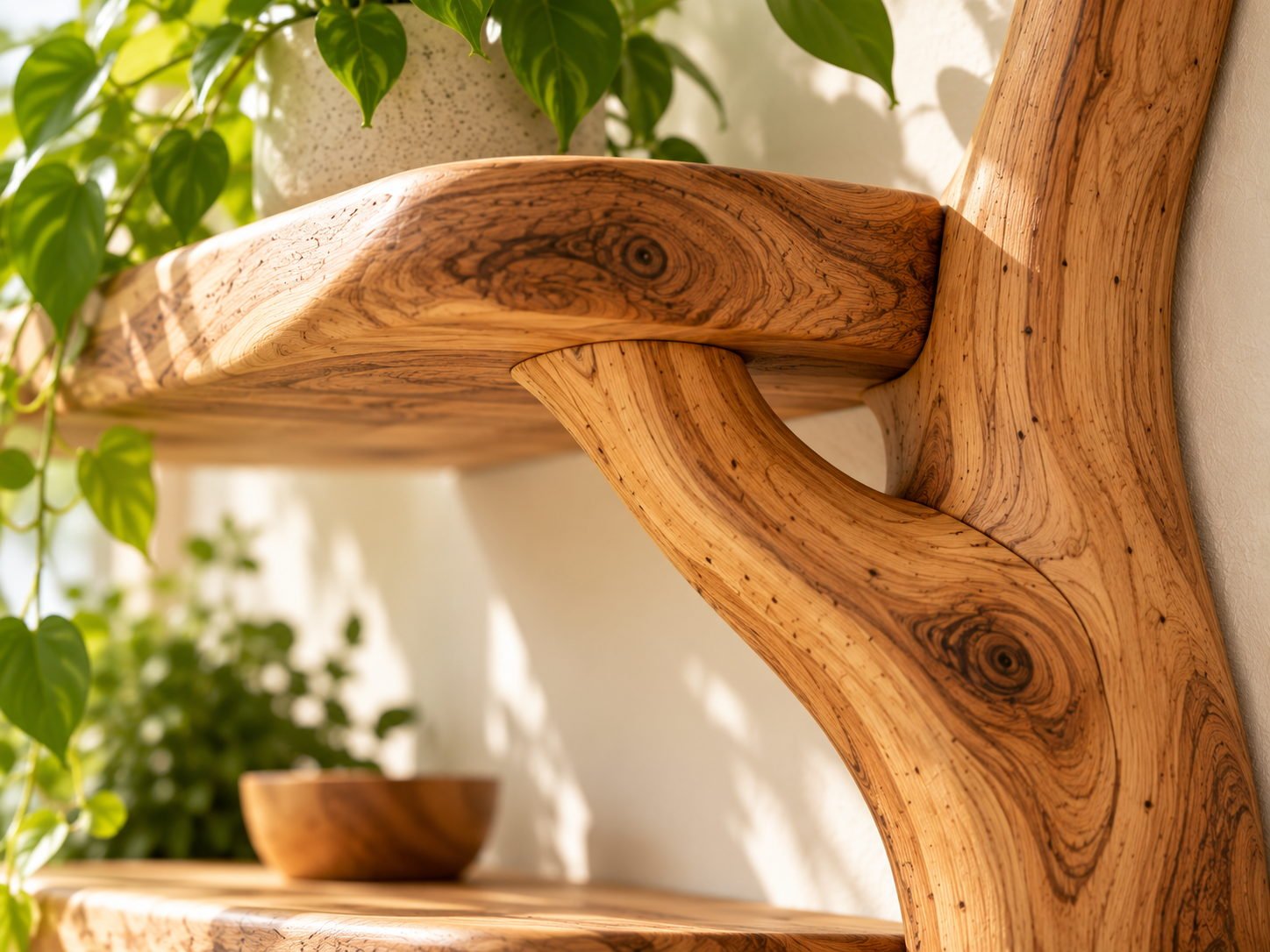

One panel, one outline: the grain runs unbroken from the top curve through all three shelves
Natural hardwax oil: shows the grain, repairable in situ
Matte white: birch ply, sealed edges, the best-selling painted option
Two-tone: stained back panel, lacquered shelves
Black or sage: water-based, 2 coats, for the darker interior palettes
Application & compliance
How this ships and what paperwork comes with it
This is a design-led SKU: it sells to interior retailers and online brands who need one image that stops a scroll, and to contract buyers who want a signature detail on a hotel or clinic wall.
StabilityLoad + anti-tip
Static load stated per shelf, proof-tested at 3×; anti-tip strap and wall plug pack in every carton over 120 cm.
AssemblyCam-lock + dowel
Six fixings, one hex key, target build under 12 minutes, QR video in your language.
PanelsTSCA Title VI / CARB P2
Certified where ply or MDF appears; solid pine, rubberwood and acacia are out of scope.
PackingISTA 3A
0.06–0.14 m³ per unit, corner blocks, honeycomb or moulded-pulp end caps.
Pine and ply versions are outside TSCA Title VI for solid wood; the MDF version is certified and we supply the panel certificate per batch. For the EU, GPSR file and responsible-person data come with the order, plus a wall-fixing instruction sheet matched to masonry, plasterboard and stud walls.
FAQ
Objections we handle weekly
The answers below are the ones we give on the phone. Anything missing, ask on WhatsApp.
Can you cut our own outline?
Yes. That is the point of the product. Send a sketch, a PDF, an SVG or even a photo of a shape you like, and we return a cut file and a 1:1 paper template for approval. Below 400 pcs we may ask you to choose from our range instead, because setting a new program and a jig only pays above that.
How does it fix to the wall without visible brackets?
A French cleat in the same species, screwed to the wall and slotted into the back of the shelf, plus two screw pockets. Nothing shows from the front. It needs a flat wall, on render or old plasterboard we recommend a ply backer, and we will say so rather than let a customer find out with a loaded shelf.
Is an irregular shape a breakage risk in transit?
It is if it is packed like a rectangle. We cut a moulded-pulp or honeycomb end cap to the outline, so the thin branches are supported rather than hanging in space, and drop-test the packed unit to ISTA 3A. The carton looks odd; the arrival rate does not.
